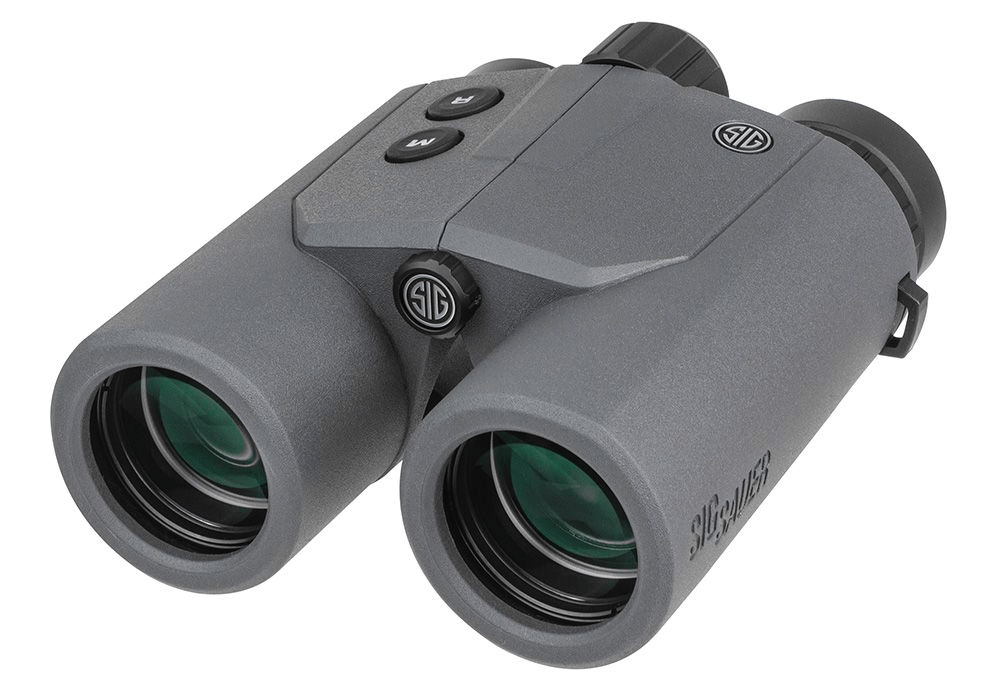

SIG SAUER CANYON 10×42 Rangefinding Binocular

Description

SIG SAUER CANYON 10×42 Rangefinding Binocular

The SIG SAUER CANYON 10×42 Rangefinding Binocular combines observation and laser ranging in one field-ready optic. This exact graphite-gray model, manufacturer part number SOKCN101, pairs 10x magnification and 42 mm objective lenses with SIG SAUER’s Lightwave DSP rangefinder engine. It is designed for hunters, shooters, and archers who want to identify a target, measure distance, and receive useful angle or ballistic information without switching between separate binoculars and a handheld rangefinder.

The 10×42 configuration provides a practical combination of detail, field usability, and light-gathering ability. Ten-power magnification helps reveal distant terrain and game, while the 42 mm objectives remain manageable for extended use. SIG’s SpectraCoat anti-reflection coatings reduce surface reflections across the visible spectrum to improve light transmission and optical clarity. A central focus control, adjustable eyecups, and diopter adjustment help users tailor the view to their eyes.

Fast Lightwave DSP Ranging

At the center of the CANYON is SIG SAUER’s Lightwave DSP digital signal-processing engine. The system is rated to range reflective targets as far as 4,000 yards, trees to 2,000 yards, and deer-size non-reflective targets to 1,500 yards under favorable conditions. Actual performance varies with target reflectivity, target size, weather, atmospheric conditions, steadiness, and terrain.

HyperScan updates range data four times per second in scan mode, making it easier to follow moving subjects or sweep across changing terrain. RangeLock can report the closest, farthest, or most recent result according to the selected setup. Distance may be displayed in yards or meters with one-tenth-unit resolution, providing fast, readable feedback for field decisions.

Useful Ranging and Ballistic Modes

The CANYON offers multiple operating modes for different applications. Line of Sight reports the direct measured distance. Angle Modified Range uses the onboard inclinometer to calculate an equivalent horizontal distance, helping account for steep uphill or downhill shots. Eight onboard ballistic groups can provide shooting solutions in either MOA or MRAD, reducing dependence on a separate chart for common field scenarios. Shooters should still confirm their selected group and real-world firearm data before relying on a displayed solution.

SIG SAUER also includes a dedicated Archery Mode that provides corrected shoot-to distance for angled shots. This makes the binocular useful beyond rifle applications and allows bowhunters to work from the same optic when judging elevated or downhill opportunities. The bright red OLED display is designed to keep ranging information visible across varied backgrounds and lighting conditions.

Built for Field Use

A rugged rubber-armored exterior improves grip and adds protection during transport and field handling. The binocular measures approximately 5.8 inches long, 5.4 inches wide, and 2.7 inches high, with a listed weight of 29 ounces. Its 6.1-degree field of view supports terrain scanning, while the 14.7 mm listed eye relief and adjustable eyecups help users establish a comfortable viewing position.

Power comes from one CR2 battery, with a listed runtime of up to approximately 4,000 ranging operations. Because runtime depends on temperature, scan-mode use, battery quality, and display settings, carrying a spare battery is sensible for extended trips. The unit’s combined design can reduce the number of separate devices carried afield and keeps ranging controls immediately available while observing.

Key Features

• Exact model: SOKCN101 with UPC 798681677023
• Optical configuration: 10x magnification with 42 mm objective lenses
• Coatings: SpectraCoat anti-reflection lens treatment
• Display: red OLED illuminated display
• Ranging engine: Lightwave DSP with HyperScan updates four times per second
• Maximum reflective range: up to 4,000 yards under favorable conditions
• Listed tree range: up to 2,000 yards
• Listed deer range: up to 1,500 yards
• Modes: Line of Sight, Angle Modified Range, ballistic groups, and Archery Mode
• Ballistic support: eight onboard groups with MOA or MRAD solutions
• Power: one CR2 battery
• Color: graphite-gray

A Practical All-in-One Field Optic

The SIG SAUER CANYON is well suited to users who value fast transitions from glassing to ranging. Rather than lowering binoculars and reaching for another device, the operator can keep the target in view, measure distance, and select the information appropriate to the shot. Its combination of 10×42 optics, rapid scan performance, angle compensation, ballistic groups, and archery functionality makes it a versatile choice for open-country hunting, wooded terrain, target shooting, and range work.

For best results, become familiar with the controls before entering the field, select the correct ballistic group or mode, and verify solutions against confirmed firearm or bow data. Laser rangefinders are measurement tools; responsible shot selection must also account for wind, equipment limits, target movement, and a safe backstop.
