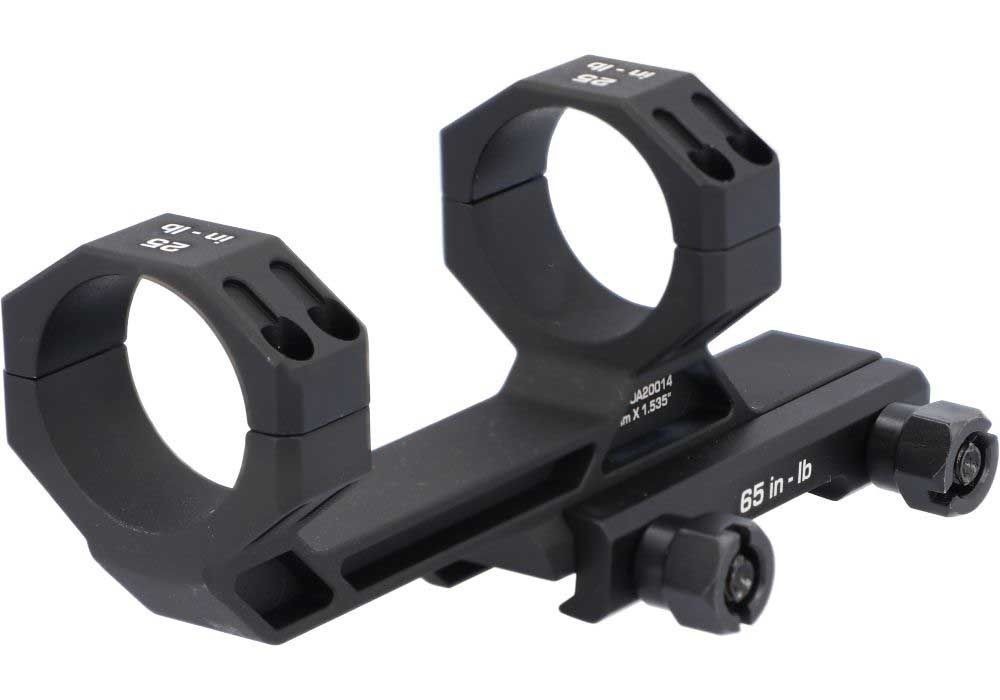

SIG SAUER ALPHA MSR 30mm Scope Mount – Black

SIG SAUER ALPHA MSR 30mm 0-MOA Scope Mount

The SIG SAUER ALPHA MSR 30mm mount provides a one-piece cantilever solution for installing a compatible 30mm riflescope on a firearm with a 1913/Picatinny top rail. Its 0-MOA configuration, 1.535-inch mounting height, and forward-offset layout are suited to modern sporting rifle setups where correct scope position and consistent rail engagement are important. This black model is identified by manufacturer part number SOA20014.

Designed for 30mm Riflescopes

This version of the ALPHA MSR is sized specifically for riflescopes with a 30mm main tube. Using the correct ring diameter is essential: a 30mm mount should not be used with a 1-inch or 34mm tube unless the optic manufacturer expressly provides a compatible adapter. The integrated ring-and-base design keeps the mounting components together as one assembly, simplifying equipment selection and reducing the number of separate bases and rings required for installation.

The mount places the scope’s optical center 1.535 inches above the rail. That height is common for flat-top modern sporting rifles and provides clearance for many objective housings and rifle controls, although actual fit depends on the scope, rail, firearm, and accessory arrangement. Its cantilever layout helps position the optic forward while keeping the mount attached to the receiver rail. This can make it easier to establish suitable eye relief without bridging onto a separate handguard.

Rail Interface and Finish

Steel 1913-style clamps secure the assembly to a compatible Picatinny rail. The mount uses a 0-MOA cant, so it does not add a built-in elevation slope between the rail and optic. A black powder-coated exterior helps protect the surface from routine outdoor exposure, gun oils, and common cleaning products while matching a wide range of rifles and optics.

Key Specifications

• Model: SIG SAUER ALPHA MSR
• Scope tube diameter: 30mm
• Cantilever-style one-piece mount
• Rail compatibility: 1913/Picatinny
• Cant: 0 MOA
• Optical-center/ring height: 1.535 inches
• Steel 1913-style rail clamps
• Color and finish: black, powder coated
• Manufacturer part number: SOA20014
• UPC: 798681656004

Installation Considerations

Confirm the riflescope tube diameter, available rail slots, eye-relief requirement, and clearance before installation. Degrease mounting surfaces as directed, seat the mount squarely against the rail, and tighten fasteners gradually and evenly using the current SIG SAUER instructions and an appropriate torque tool. Excessive ring-cap torque can damage a scope tube, while insufficient or uneven torque can allow movement and affect zero. After initial installation, verify reticle level, eye relief, fastener security, and clearance through the firearm’s complete operating cycle.

This listing includes the scope mount only. Riflescope, firearm, tools, and other accessories are not included.
