SIG SAUER BRAVO6T-BDX 5-30x56mm Rifle Scope

SIG SAUER BRAVO6T-BDX 5-30x56mm Rifle Scope

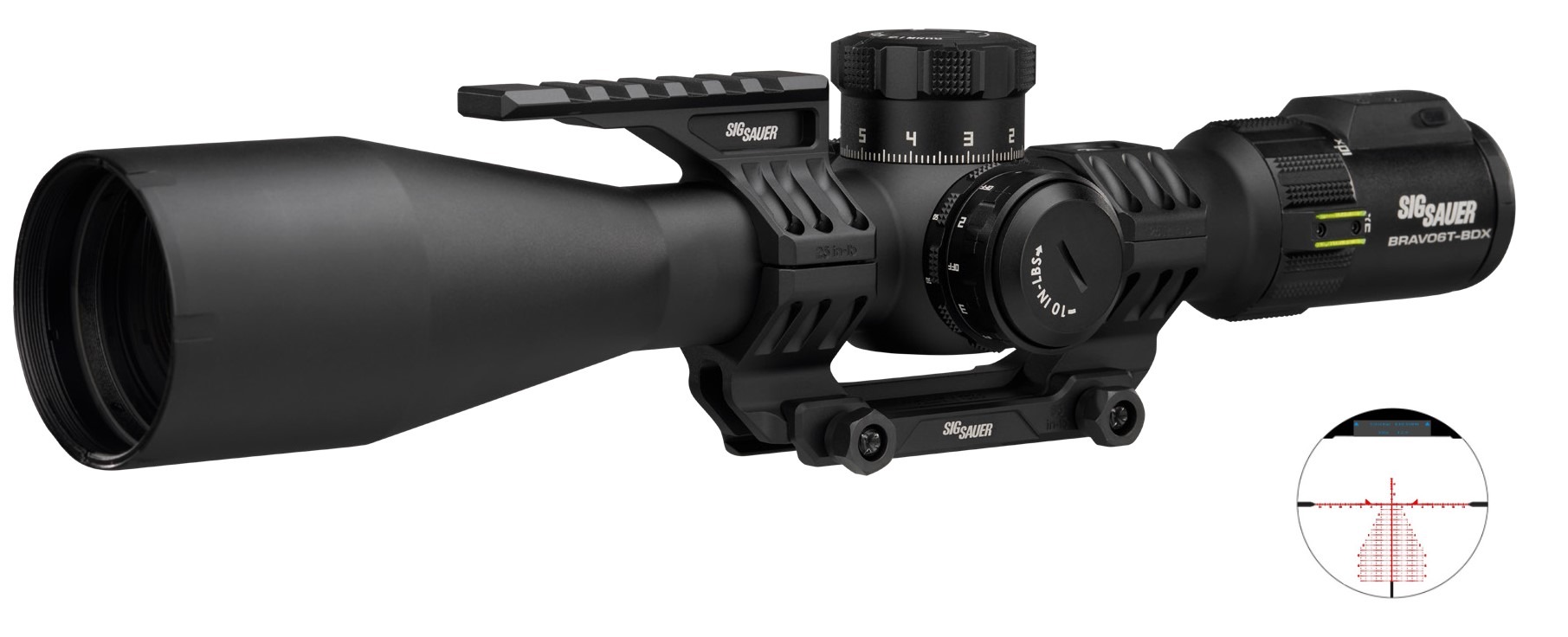

The SIG SAUER BRAVO6T-BDX is a digitally enhanced precision riflescope that combines a 5-30x optical system, a 56mm objective and a first-focal-plane illuminated MRAD DEV-L 2.0 reticle. This exact black configuration is manufacturer part number SOBBDX65104 with UPC 798681721467. It uses a 35mm main tube and includes an ALPHA5 1.250-inch-height mount with an LRF diving board, creating an integrated foundation for a long-range BDX system.

Digital Ballistic Integration

The BRAVO6T-BDX is designed to reduce the number of separate references a shooter must consult while building an elevation solution. Its eTRAK elevation dial works with SIG SAUER ZeroSync technology to monitor dial input and coordinate the selected elevation with the calculated shoot-to distance shown in the optic’s low-profile heads-up display. The intent is to let the shooter rotate the elevation control until the displayed distance corresponds with the target distance while maintaining position behind the rifle.

ZeroSync connects the eTRAK dial with Applied Ballistics calculations and accounts for prior adjustments, helping the displayed solution stay aligned with the optic’s current settings. Advanced Bluetooth connectivity supports communication with compatible SIG SAUER KILO BDX laser rangefinders and other supported devices at distances of up to 30 yards. As with any ballistic solution, the user remains responsible for confirming firearm, ammunition and environmental inputs and validating data at known distances.

Optical System and Reticle

A 5-30x magnification range provides a six-times optical ratio for observation, target identification and precise aiming across varied distances. The large 56mm objective supports light gathering, while SIG SAUER’s HDX optical system combines extra-low-dispersion glass with high-transmittance lenses. The reticle sits in the first focal plane, so its subtensions remain proportional to the target throughout the magnification range.

This variant uses the illuminated MRAD DEV-L 2.0 reticle and 0.1 MRAD adjustments. Published specifications list 40 MRAD of windage and elevation adjustment, 10 MRAD of travel per turret rotation, approximately 3.7 to 3.9 inches of eye relief and a field of view of 21 to 3.5 feet at 100 yards. The exit-pupil range is listed at 8.1 to 1.9mm. LevelPlex technology assists with detecting cant, and the side-focus control supports parallax adjustment.

Controls and Included Hardware

The eTRAK elevation assembly uses tactile adjustments and a Multi-Lock zero-stop system, giving the operator a repeatable mechanical reference after the optic is zeroed. The heads-up display is positioned within the field of view so that digital information can be monitored without looking away from the optic. Because the system combines mechanical dialing with electronic data, users should confirm battery condition and preserve a verified conventional elevation reference for field use.

The included ALPHA5 mount and LRF diving board are important parts of this specific package. The mount is sized for the 35mm tube and places the optic at a listed 1.250-inch height. The diving board provides a dedicated position for compatible ranging hardware. Before adding equipment, confirm allowable load, fastener torque and clearance with the rifle manufacturer and SIG SAUER documentation.

Key Specifications

• Magnification: 5-30x
• Objective lens: 56mm
• Main tube: 35mm
• Focal plane: first focal plane
• Reticle: illuminated MRAD DEV-L 2.0
• Adjustment: 0.1 MRAD per click
• Adjustment range: 40 MRAD windage and elevation
• Eye relief: approximately 3.7-3.9 inches
• Weight: approximately 32.6 ounces
• Battery: CR1/3N
• Included mount: ALPHA5, 1.250-inch height, with LRF diving board
• MPN / UPC: SOBBDX65104 / 798681721467

Setup Considerations

Installation should follow SIG SAUER’s published mounting and torque instructions for the optic and supplied mount. Confirm adequate eye relief, clearance around the objective and controls, and a level installation before zeroing. Pairing, ballistic-profile setup, firmware management and environmental inputs should be completed through the supported BDX workflow. After initial setup, verify tracking, zero retention and calculated solutions with the intended rifle and ammunition.

The BRAVO6T-BDX is intended for users who want premium magnified optics and an integrated digital ballistic workflow in one system. Its combination of a first-focal-plane MRAD reticle, eTRAK control, heads-up display, BDX connectivity, HDX glass and included ALPHA5 mount distinguishes it from a conventional 5-30x riflescope.
