SIG SAUER JULIET5-MICRO 5×24 Magnifier

SIG SAUER JULIET5-MICRO 5×24 Magnifier

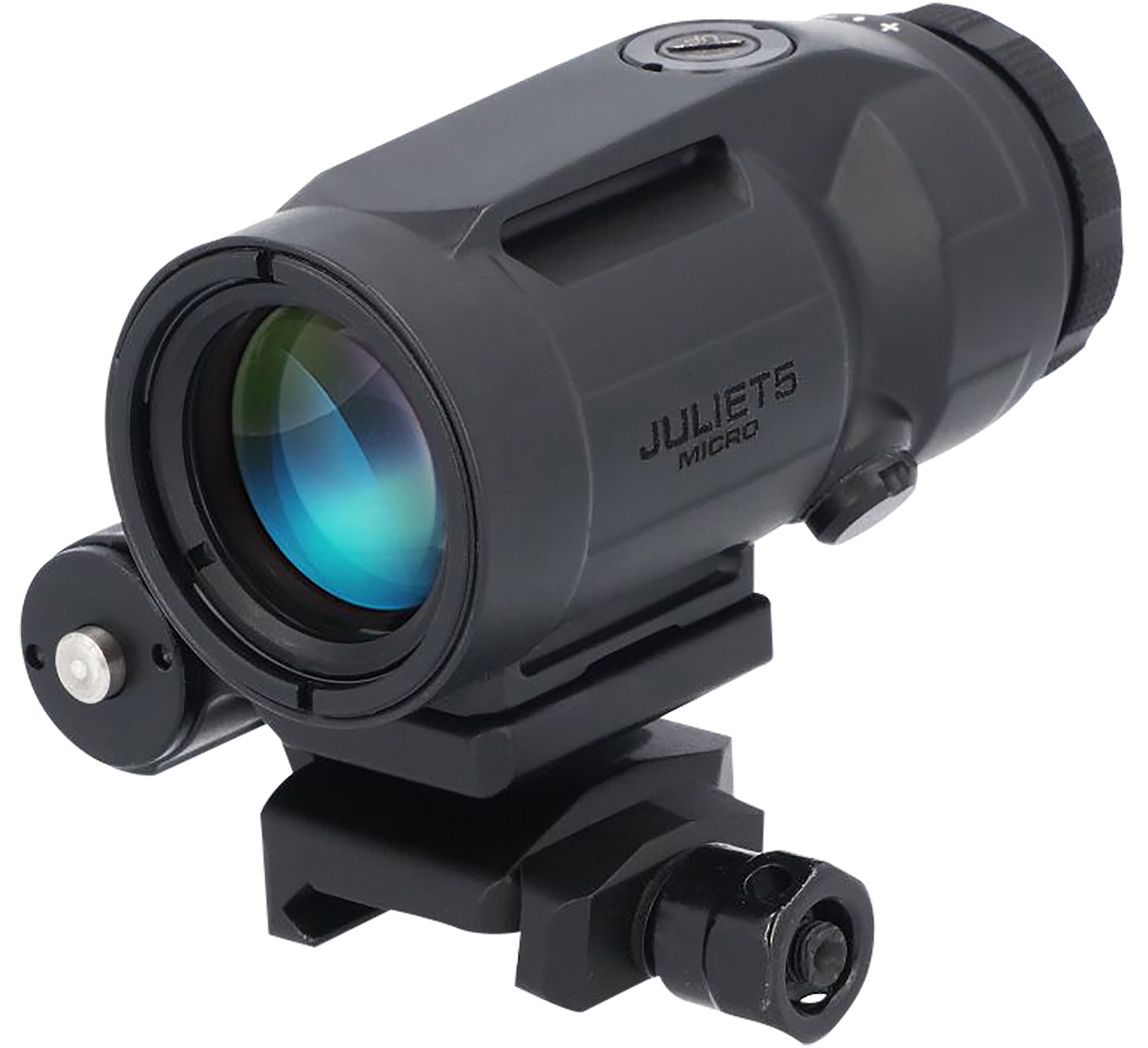

The SIG SAUER JULIET5-MICRO is a 5x optical magnifier intended to work behind a compatible unmagnified sight. This black model, manufacturer part SOJ5M001, has a 24 mm objective lens, a compact housing, and a push-button flip-to-side mount for an M1913 Picatinny rail. It is a magnifier rather than a standalone illuminated red-dot sight: the aiming reticle comes from the separate optic placed in front of it.

What the magnifier changes

A red-dot sight can provide an unmagnified view for nearby targets. Placing the JULIET5-MICRO behind a compatible sight gives the user a 5x view when magnification helps them inspect a smaller or more distant target. The flip-to-side mechanism moves the magnifier out of the viewing line when it is not needed. SIG SAUER describes a push-button mount that lets the user move between these viewing configurations; plan the mounting position and available rail space around the red-dot sight you already own.

The 24 mm objective and 5x magnification are fixed specifications, not a variable 1–5x zoom range. SIG SAUER lists a 4.0-degree field of view and a 4.5 mm exit pupil. Those specifications help compare the viewing experience with other compact magnifiers. The manufacturer lists a plus-or-minus 2 diopter adjustment range for bringing the sight picture into focus for the user’s eye.

Mounting and fit

The magnifier attaches directly to an M1913 Picatinny rail using its supplied push-button mount. SIG SAUER identifies this configuration as including spacers. Before purchasing, check that your red-dot sight and rail arrangement provide enough room for the magnifier, allow the optical axes to align, and put the eyepiece at a comfortable position. The magnifier’s specifications do not establish compatibility with every red-dot height or every rifle setup; compare the included spacer configuration and the other optic’s mount.

SIG SAUER lists an overall length of 79 mm, overall width of 69 mm, and height of 64 mm, with a weight of 9.6 ounces. The listed eye relief in this product’s supplier attributes is 2.36 inches. Unlike a red-dot sight, a magnifier requires the user’s eye to be positioned behind the eyepiece, so eye placement is a meaningful consideration when setting up the optic.

Specifications

• Manufacturer part: SOJ5M001
• Type: JULIET5-MICRO optical magnifier
• Magnification and objective: Fixed 5x with 24 mm objective
• Mount: Push-button flip-to-side mount for M1913 Picatinny rail; spacers identified by SIG SAUER
• Field of view: 4.0 degrees
• Exit pupil: 4.5 mm
• Diopter adjustment: Plus or minus 2
• Size and weight: 79 mm long, 69 mm wide, 64 mm high; 9.6 ounces
• Finish: Black

This listing is for the JULIET5-MICRO magnifier, not a bundled red-dot sight. Match the SOJ5M001 part number and verify mount height, rail space, and the separate optic before ordering. That comparison is particularly important when choosing between different JULIET magnifications or mounts.
